Safety Belt Buckle - Front
›
Notes
Safety Belt Buckle - Front: Notes

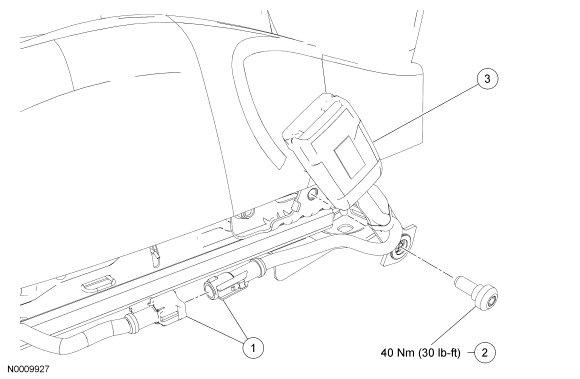

Fig 1: Front Safety Belt Buckle With Torque Specification
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Safety belt buckle switch electrical connector
2
-
Safety belt buckle bolt
3
61202/61203
Safety belt buckle assembly (RH/LH)
