Extension Housing Gasket: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Installer, Drive Pinion Flange	205-479
	Installer, Output Shaft Flange	307-404
	Remover, Output Shaft Flange	307-523

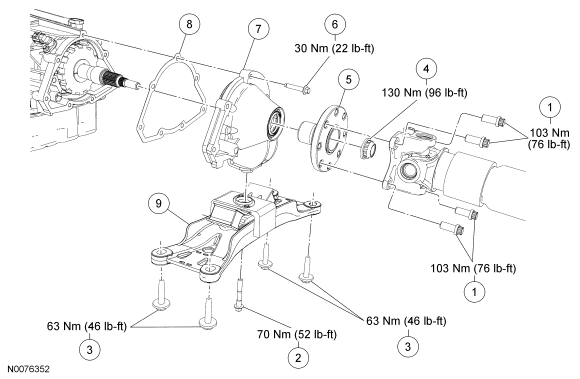

Fig 1: Exploded View Of Extension Housing Gasket With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701357	Transmission output shaft flange coupler bolt (4 required)
2	W705966	Transmission insulator-to-extension housing center screw
3	W704971	Transmission crossmember-to-floor pan screws
4	W701357	Transmission output shaft flange nut
5	7089	Transmission output shaft flange
6	W500311	Extension housing-to-case screw (7 required)
7	7A039	Extension housing
8	7086	Extension housing gasket
9	-	Crossmember
