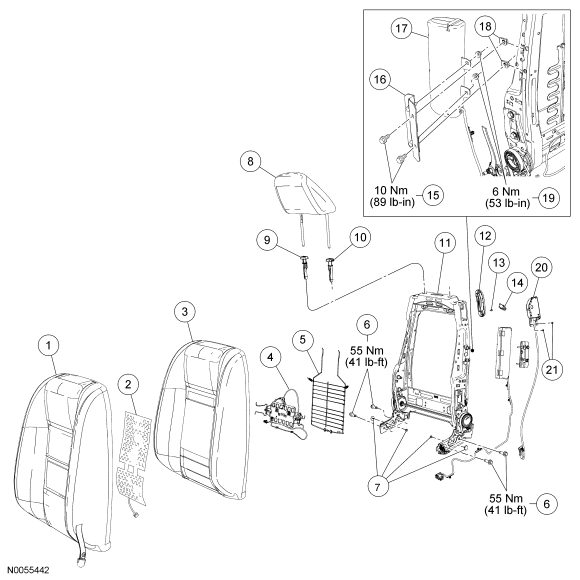

Seat Backrest - Front: Notes
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64417 | Backrest trim cover |
| 2 | 14D696 | Heated seat element (if equipped) |
| 3 | 64810 | Backrest foam pad |
| 4 | 65500 | Power lumbar assembly (driver only) (if equipped) |
| 5 | 63226 | Static lumbar |
| 6 | W500633 | Recliner-to-cushion frame bolts (4 required) |
| 7 | 056552 | Plastic rivets |
| 8 | 611A08 | Head restraint assembly |
| 9 | 022537 | Inboard head restraint guide |
| 10 | 020617 | Outboard head restraint guide |
| 11 | 61018 | Backrest frame |
| 12 | 62672 | Backrest recliner release bezel |
| 13 | W506943 | Backrest recliner release bezel screw |
| 14 | 62762 | Backrest recliner release handle |
| 15 | N605892 | Side air bag module bolts |
| 16 | 611D79 | Side air bag module bracket |
| 17 | 611D11 | Side air bag module |
| 18 | W520822 | U-nuts |
| 19 | 051811 | Side air bag module-to-bracket nuts (part of 611D10) |
| 20 | 62432 | Backrest recliner release |
| 21 | - | Rivets |
