Seat - Exploded View, Front

NOTE: LH shown, RH similar.

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	64417	Backrest trim cover
2	14D696	Heated seat element (if equipped)
3	64810	Backrest foam pad
4	65500	Power lumbar assembly (driver side only) (if equipped)
5	63226	Manual lumbar
6	W500633	Recliner-to-cushion frame bolts (4 required)
7	056552	Plastic rivets
8	611A08	Head restraint assembly
9	022537	Inboard head restraint guide
10	020617	Outboard head restraint guide
11	61018	Backrest frame
12	62672	Backrest recliner release bezel
13	W506943	Backrest recliner release bezel screw
14	62762	Backrest recliner release handle
15	N605892	Side air bag module bolts (2 required)
16	611D79	Side air bag module bracket
17	611D11	Side air bag module
18	W520822	U-nuts (2 required)
19	051811	Side air bag module-to-bracket nuts (2 required) (part of 611D10)
20	62432	Backrest recliner release
21	-	Backrest recliner release rivets (2 required)

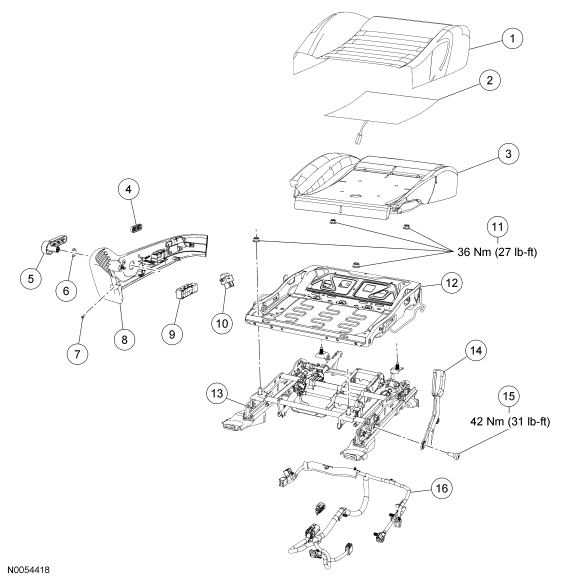

Fig 2: Exploded View Of Driver Power Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62901	Cushion trim cover
2	14D698	Heated seat element (if equipped)
3	-	Cushion foam pad
4	-	Seat control switch knob (if equipped)
5	62622	Recliner handle
6	-	Recliner handle clip (part of 62622)
7	-	Cushion side shield screw
8	62187	Cushion side shield
9	14A701	Seat control switch
10	619A74	Lumbar control switch (if equipped)
11	W520113	Cushion frame-to-seat-track nuts
12	63101	Cushion frame
13	61701	Power seat track
14	61203	Safety belt buckle
15	-	Safety belt buckle bolt (part of 61203)
16	14A699	Driver seat wire harness

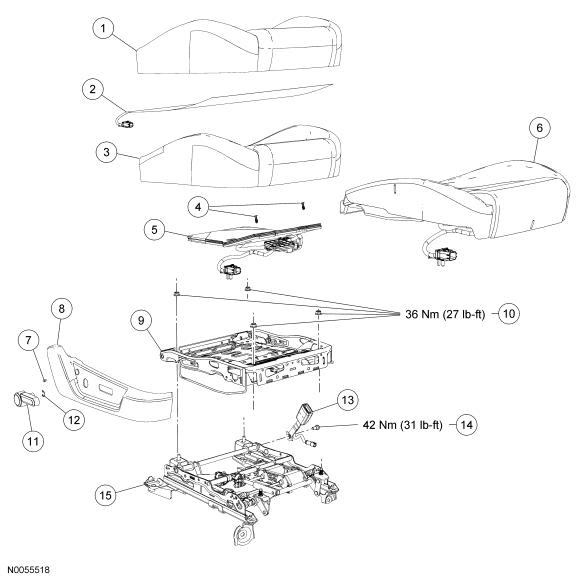

Fig 3: Exploded View Of Driver Manual Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62901	Cushion trim cover
2	14D698	Heated seat element (if equipped)
3	-	Cushion foam pad
4	62768	Manual height adjust handle center cover (if equipped)
5	61753	Manual height adjust handle (if equipped)
6	W520113	Cushion frame-to-seat-track nuts (4 required)
7	62622	Recline handle
8	-	Recline handle clip (part of 62622)
9	-	Cushion side shield screw
10	62187	Cushion side shield
11	63101	Cushion frame
12	14A699	Driver seat wire harness
13	61701	Seat track
14	61203	Safety belt buckle
15	-	Safety belt buckle bolt (part of 61203)

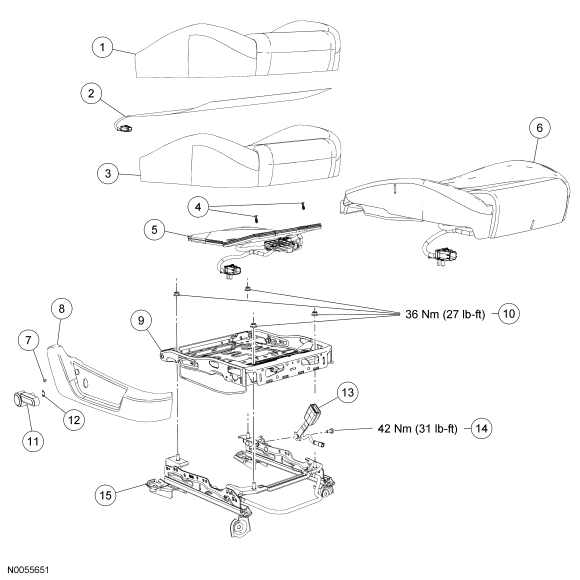

Fig 4: Exploded View Of Passenger Manual Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Cushion trim cover
2	14D698	Heated seat element (if equipped)
3	-	Cushion foam pad (part of original equipment [OE] occupant classification sensor [OCS])
4	-	Pin-type retainers (2 required) (part of OE OCS)
5	-	OE OCS
6	632A22	OCS service kit
7	-	Side shield screw
8	62186	Side shield
9	63100	Cushion frame
10	W520113	Cushion frame-to-seat-track nuts (4 required)
11	62622	Recline handle
12	-	Recline handle clip (part of 62622)
13	61203	Safety belt buckle
14	-	Safety belt buckle bolt (part of 61203)
15	618B46	Manual seat track

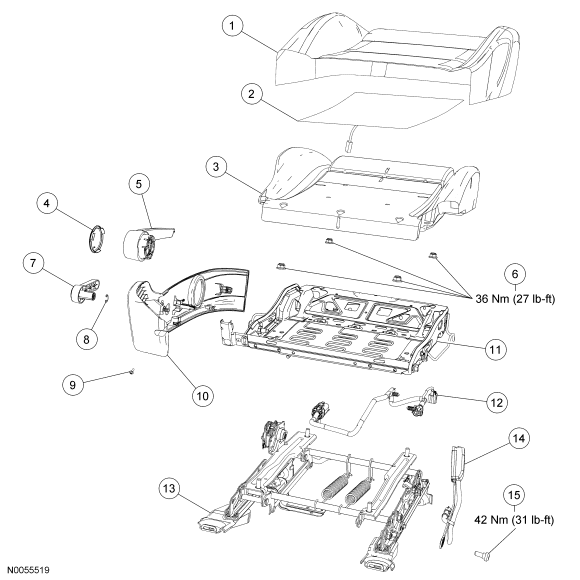

Fig 5: Exploded View Of Passenger Power Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Cushion trim cover
2	14D698	Heated seat element (if equipped)
3	-	Cushion foam pad (part of original equipment [OE] occupant classification sensor (OCS)
4	-	Pin-type retainers (2 required) (part of OE OCS)
5	-	OE OCS
6	632A22	OCS service kit
7	-	Side shield screw
8	62186	Side shield
9	63100	Cushion frame
10	W520113	Cushion frame-to-seat-track nuts (4 required)
11	62622	Recline handle
12	-	Recline handle clip (part of 62622)
13	61203	Safety belt buckle
14	-	Safety belt buckle bolt (part of 61203)
15	61701	Power seat track
