Window Regulator Motor - Rear Quarter: Notes

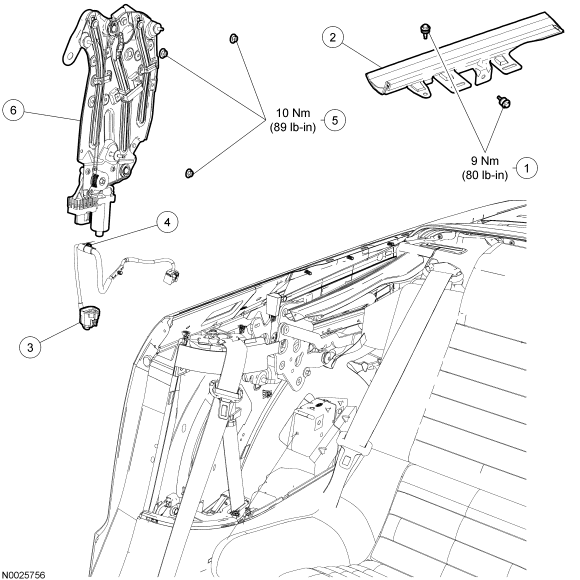

Fig 1: Window Regulator Motor With Torque Specifications - Rear Quarter

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505424	Rear quarter window inner belt weatherstrip bolts (2 required)
2	76297B06 RH/ 76297B07 LH	Rear quarter window inner belt weatherstrip
3	-	Rear quarter window motor electrical connector (part of 14A017)
4	-	Rear quarter window regulator and motor harness locator (part of 14A017)
5	N621906	Rear quarter window regulator and motor nuts (3 required)
6	76304306 RH/ 76304307 LH	Rear quarter window regulator and motor
