Dual Pressure Switch Connector
Dual Pressure Switch Connector

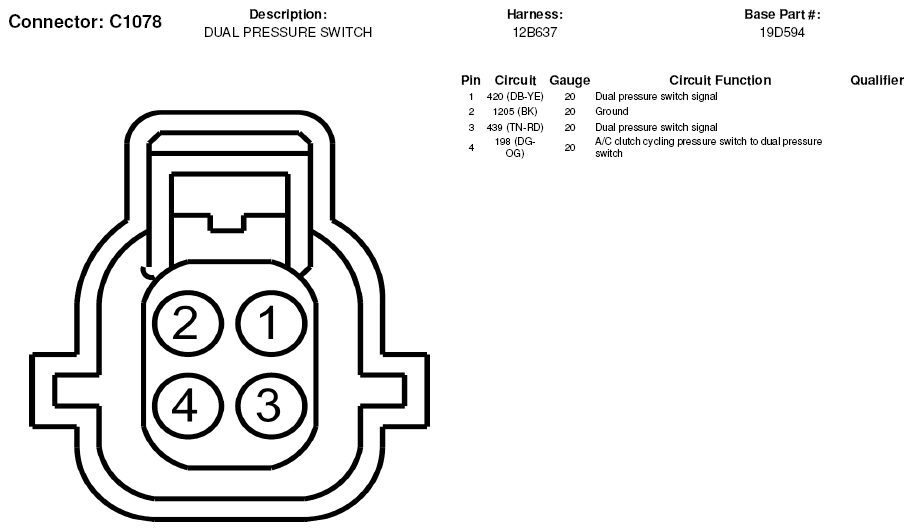

Fig 1: Dual Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
