Passive Anti-Theft Transceiver Connector
Passive Anti-Theft Transceiver Connector

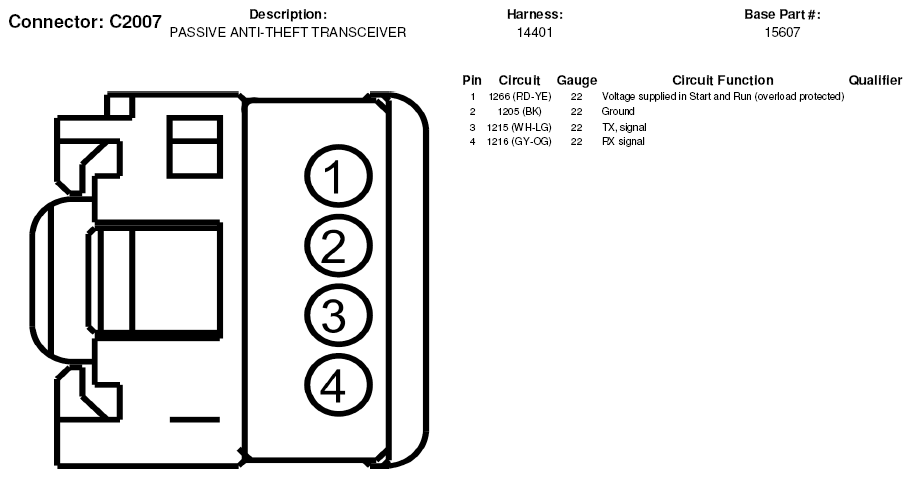

Fig 1: Passive Anti-Theft Transceiver Connector End View (C2007)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
