Side Air Bag Module Connectors

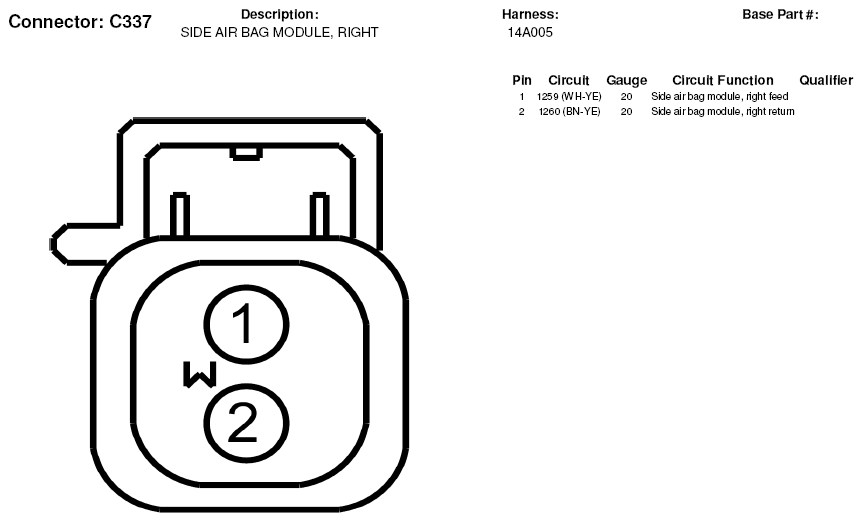

Fig 1: Side Air Bag Module Connector End View (C337)
G05183234Courtesy of FORD MOTOR CO.
Fig 2: Side Air Bag Module Connector End View (C367)
G05183240Courtesy of FORD MOTOR CO.
