Stoplamp Switch 1 Connector
Stoplamp Switch 1 Connector

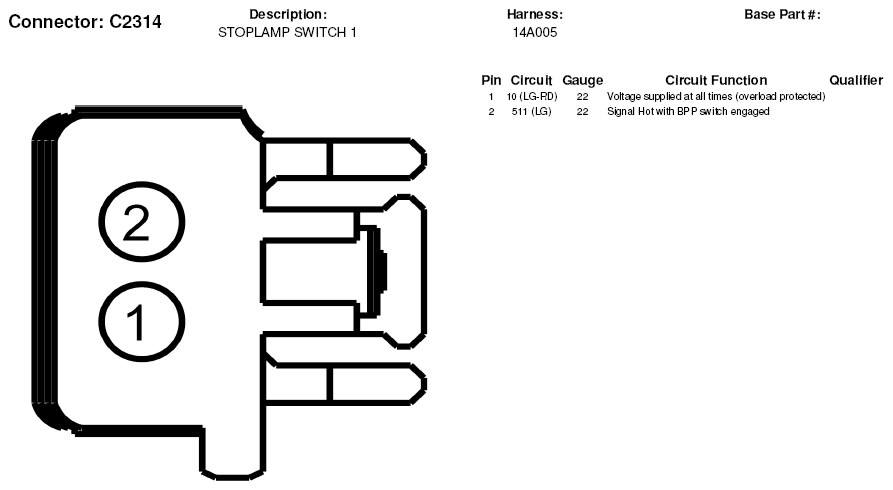

Fig 1: Stoplamp Switch 1 Connector End View (C2314)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
