Transmission Shift Selector Connector
Transmission Shift Selector Connector

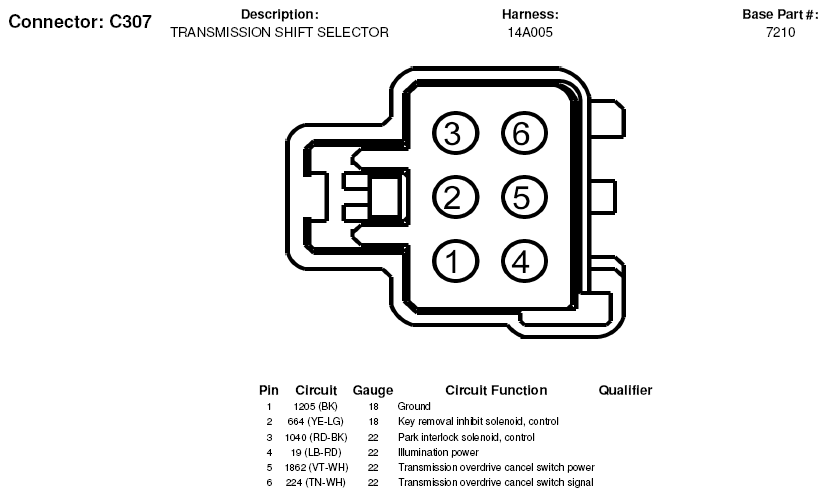

Fig 1: Transmission Shift Selector Connector End View (C307)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
