Speaker Enclosure: Notes

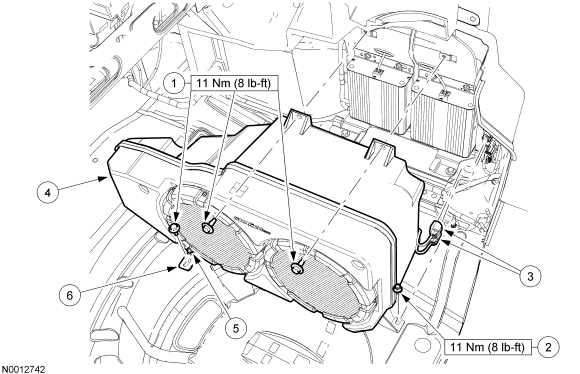

Fig 1: Speaker Enclosure With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505433	Speaker enclosure bolts (3 required)
2	W705047	Speaker enclosure nut
3	-	Speaker enclosure electrical connectors (part of 14N128)
4	19A067	Speaker enclosure
5	W505416	L-bracket screws (2 required)
6	19B187	L-bracket
