Instrument Cluster: Notes

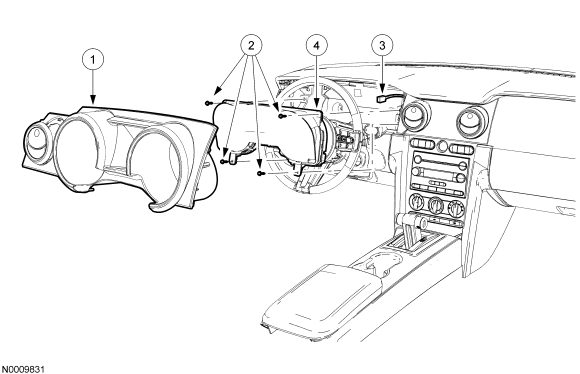

Fig 1: 7Identifying Instrument Cluster Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63044D70	Instrument cluster finish panel
2	W705314	Instrument cluster screws (4 required)
3	-	Instrument cluster electrical connector (part of 14401)
4	10849	Instrument cluster
