Defrost Mode Actuator Connector
Defrost Mode Actuator Connector

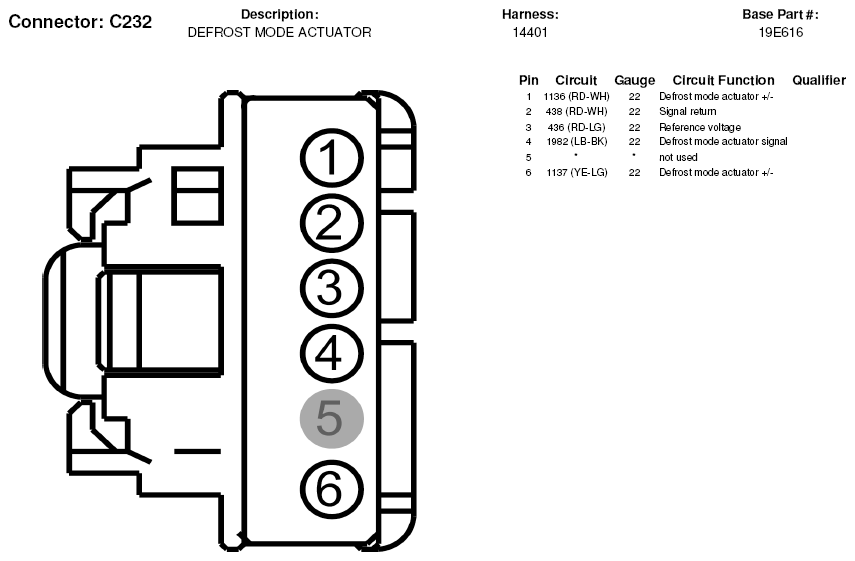

Fig 1: Defrost Mode Actuator Connector End View (C232)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
