Subwoofer Connector

Fig 1: Subwoofer Connector End View (C536)
G05183278Courtesy of FORD MOTOR CO.

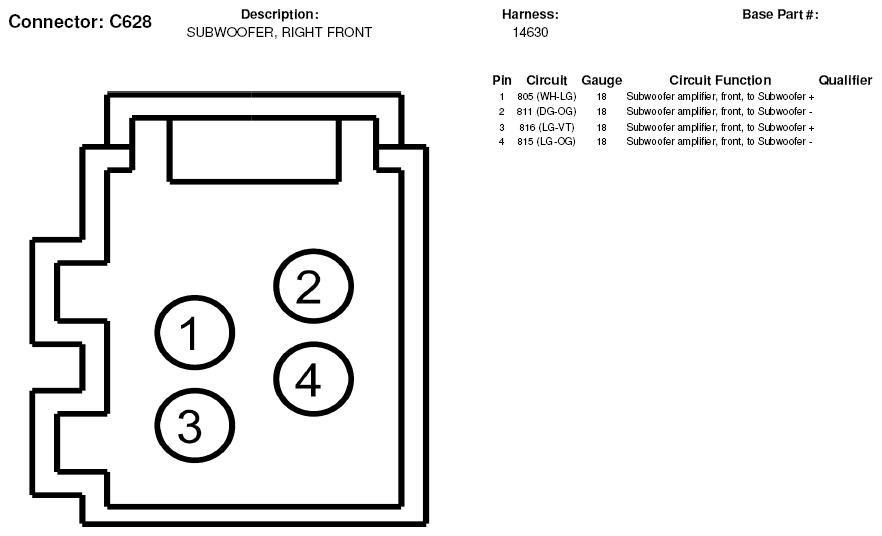

Fig 2: Subwoofer Connector End View (C628)
G05183287Courtesy of FORD MOTOR CO.
