ABS Control Module Connector

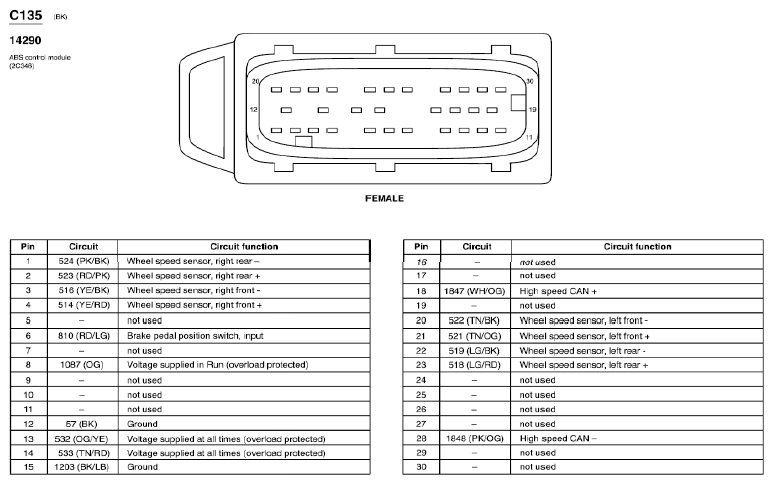

Fig 1: ABS Control Module Connector End View (C135)
G05169062Courtesy of FORD MOTOR CO.
