Powertrain Control Module (PCM) Connector

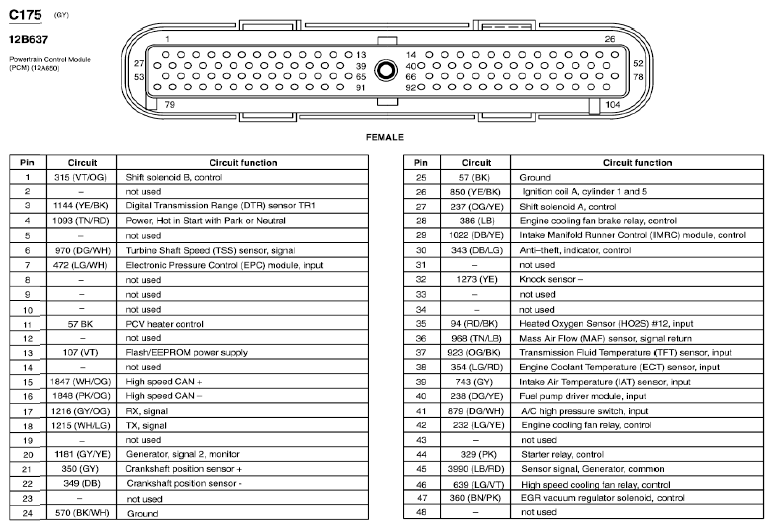

Fig 1: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
G05169067Courtesy of FORD MOTOR CO.

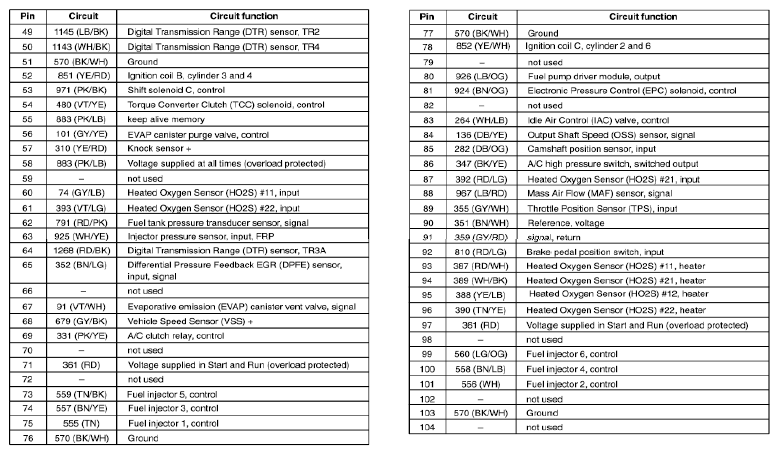

Fig 2: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
G05169068Courtesy of FORD MOTOR CO.
