Fuel Pump Driver Module Connector

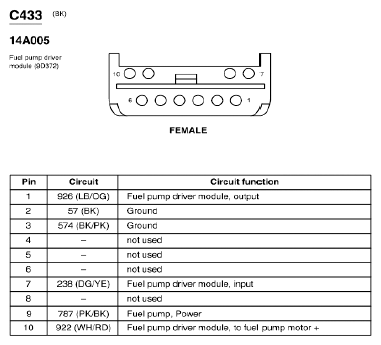

Fig 1: Fuel Pump Driver Module Connector End View (C433)
G07850237Courtesy of FORD MOTOR CO.
