Integrated Control Panel Connector

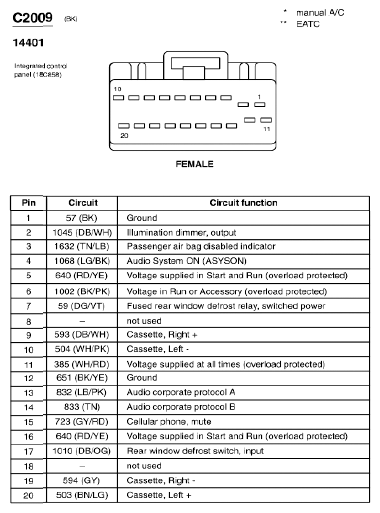

Fig 1: Integrated Control Panel Connector End View (C2009)
G07850326Courtesy of FORD MOTOR CO.
