Key Pad Switch Assembly Connector
Key Pad Switch Assembly Connector

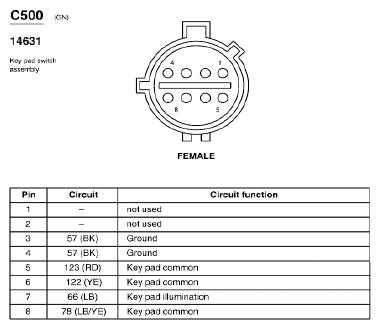

Fig 1: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.
