Master Window Adjust Switch Connector

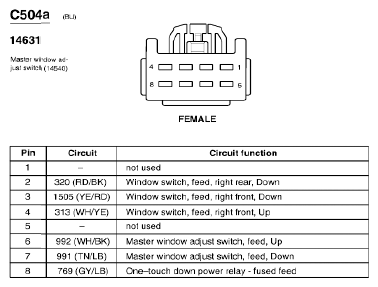

Fig 1: Master Window Adjust Switch Connector End View (C504a)
G07850252Courtesy of FORD MOTOR CO.
Fig 2: Master Window Adjust Switch Connector End View (C504b)
G07850253Courtesy of FORD MOTOR CO.
