Multifunction Switch Connectors

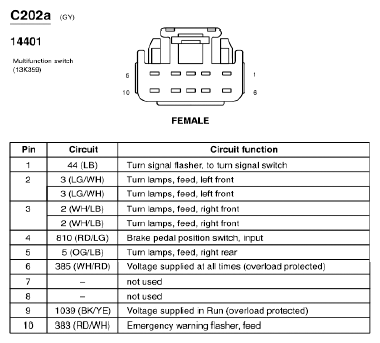

Fig 1: Multifunction Switch Connector End View (C202a)

G07850168

Courtesy of FORD MOTOR CO.

Fig 2: Multifunction Switch Connector End View (C202b)

G07850169

Courtesy of FORD MOTOR CO.

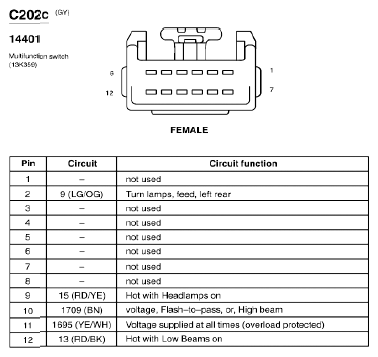

Fig 3: Multifunction Switch Connector End View (C202c)

G07850170

Courtesy of FORD MOTOR CO.
