Rear Control Unit (RCU) Connector

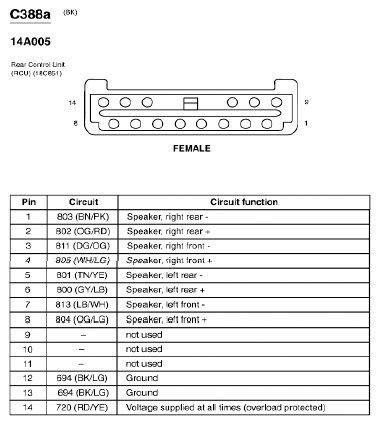

Fig 1: Rear Control Unit (RCU) Connector End View (C388a)

Courtesy of FORD MOTOR CO.

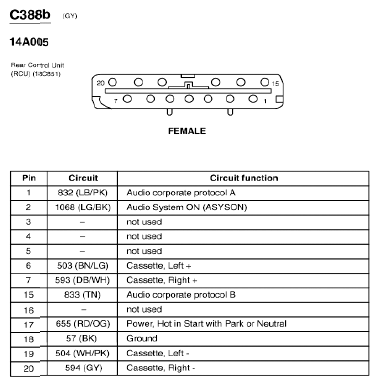

Fig 2: Rear Control Unit (RCU) Connector End View (C388b)

Courtesy of FORD MOTOR CO.

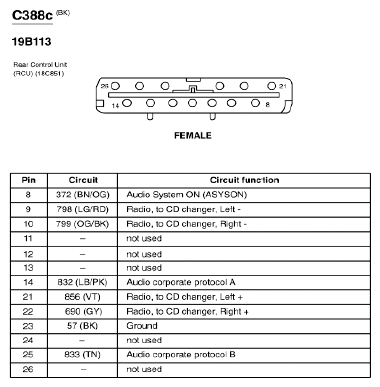

Fig 3: Rear Control Unit (RCU) Connector End View (C388c)

Courtesy of FORD MOTOR CO.
