Remote Climate Control (RCC) Module Connector
Remote Climate Control (RCC) Module Connector

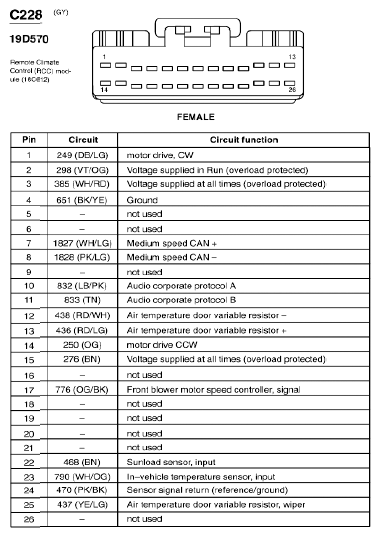

Fig 1: Remote Climate Control (RCC) Module Connector End View (C228)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
