Restraints Control Module (RCM) Connector

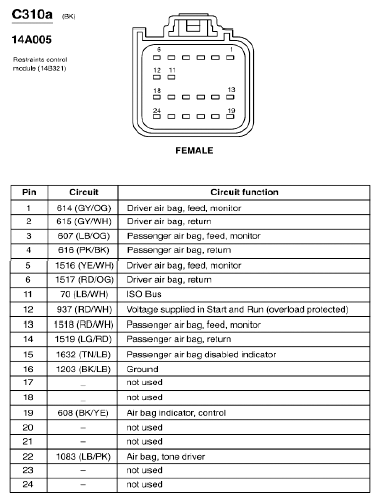

Fig 1: Restraints Control Module (RCM) Connector End View (C310a)
G07850203Courtesy of FORD MOTOR CO.
