Roof Opening Panel Module Connector

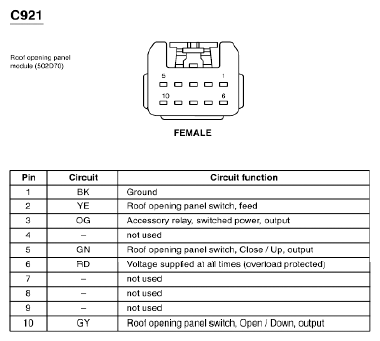

Fig 1: Roof Opening Panel Module Connector End View (C921)
G07850288Courtesy of FORD MOTOR CO.
