Smart Junction Box (SJB) Connector

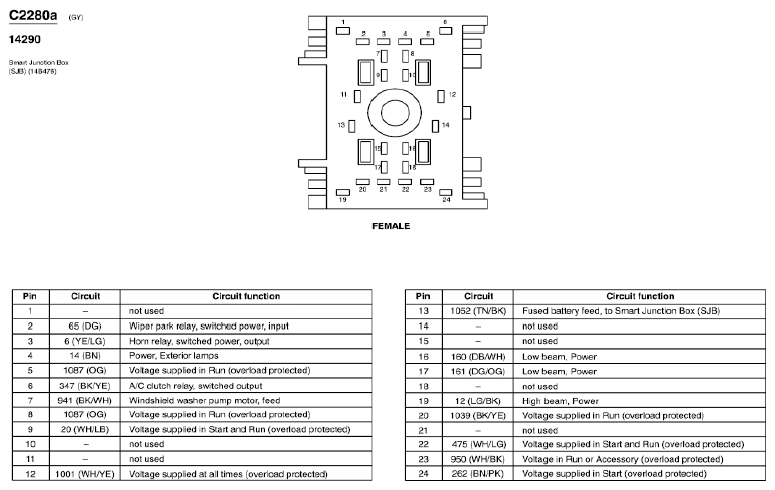

Fig 1: Smart Junction Box (SJB) Connector End View (C2280a)

Courtesy of FORD MOTOR CO.

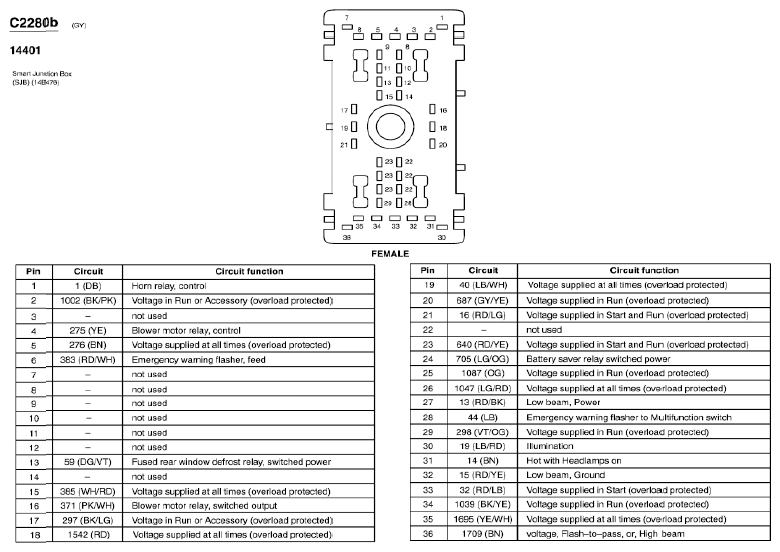

Fig 2: Smart Junction Box (SJB) Connector End View (C2280b)

Courtesy of FORD MOTOR CO.

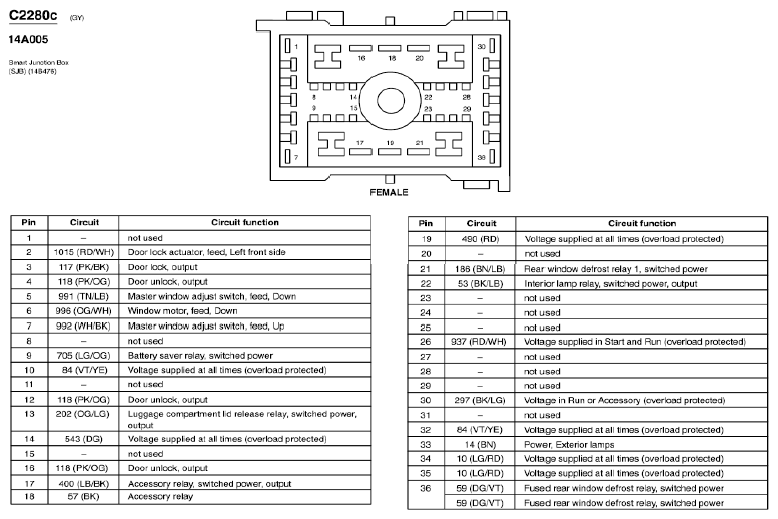

Fig 3: Smart Junction Box (SJB) Connector End View (C2280c)

Courtesy of FORD MOTOR CO.

Fig 4: Smart Junction Box (SJB) Connector End View (C2260d)

Courtesy of FORD MOTOR CO.

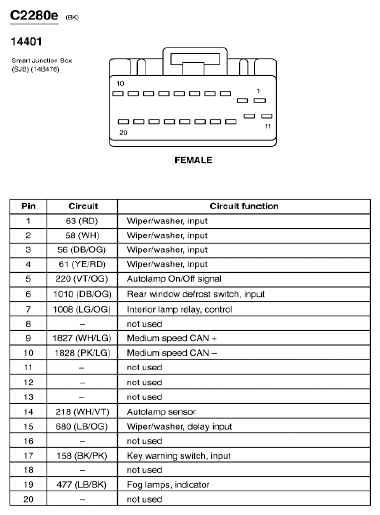

Fig 5: Smart Junction Box (SJB) Connector End View (C2280e)

Courtesy of FORD MOTOR CO.

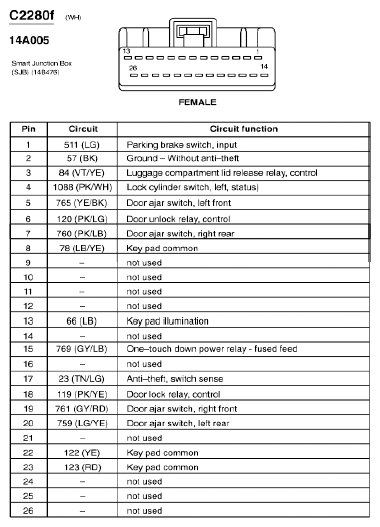

Fig 6: Smart Junction Box (SJB) Connector End View (C2280f)

Courtesy of FORD MOTOR CO.
