Transmission Hardware Unit Connector
Transmission Hardware Unit Connector

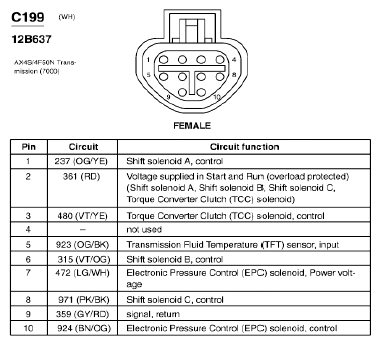

Fig 1: Transmission Hardware Unit Connector End View (C199)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
