Window Adjust Switch, Passenger Side Connector

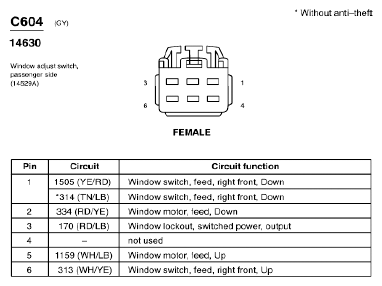

Fig 1: Window Adjust Switch, Passenger Side Connector End View (C604)
G07850264Courtesy of FORD MOTOR CO.
