Console - Floor: Notes

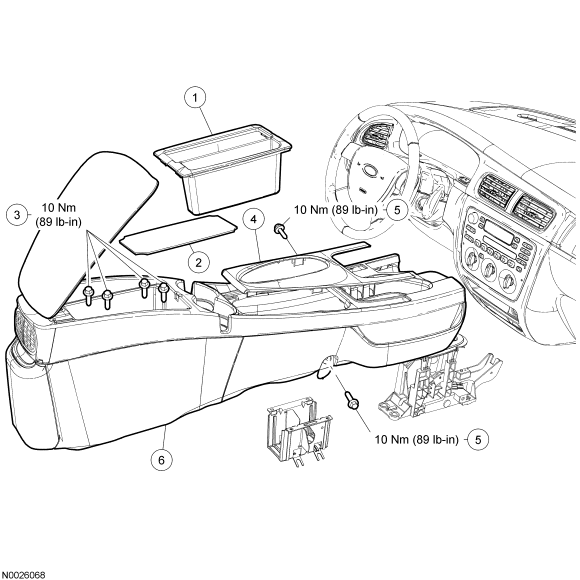

Fig 1: Exploded View Of Floor Console With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	047A44	Floor console storage bin
2	045634	Floor console storage bin mat
3	N606676-S36	Floor console bolts (4 required)
4	044D90	Shift lever bezel (if equipped)
5	N606676-S36	Floor console finish panel bolts (2 required)
6	045A06	Floor console
