Exhaust Manifold - LH: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Teflon®Seal Replacer Set | 211-D027 (D90P-3517-A) or equivalent |

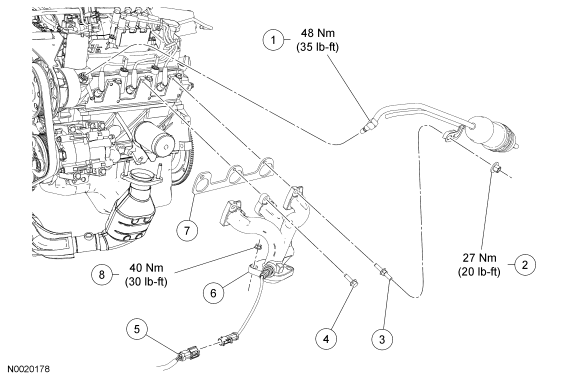

| Item | Part Number | Description |
|---|---|---|
| 1 | 3F524 | Power steering pressure (PSP) tube (with bracket) |
| 2 | N806423 | PSP tube bracket nut |
| 3 | N811572 | LH exhaust manifold stud bolt (2 required) |
| 4 | N811571 | LH exhaust manifold bolt (4 required) |
| 5 | 14A464 | Heated oxygen sensor (HO2S) electrical connector (part of 12B637) |
| 6 | 9431 | LH exhaust manifold |
| 7 | 9448 | LH exhaust manifold gasket |
| 8 | N804178 | Dual converter Y-pipe to exhaust manifold nut (2 required) |
