Exhaust Manifold - RH: Notes

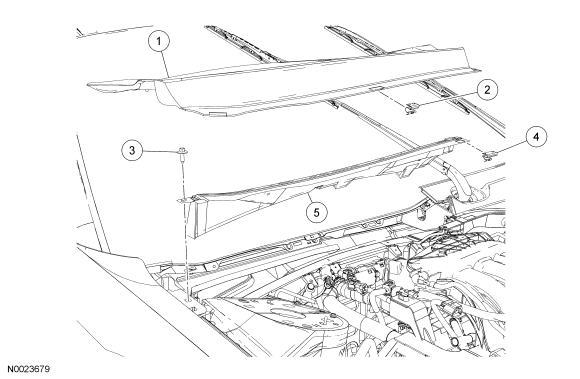

Fig 1: Exploded View Of Cowl Grille Panel
GF0019573Courtesy of FORD MOTOR CO.
Item Part Number Description
1 54018A14 Cowl grille panel
2 90447 Cowl grille panel clip (3 required)
3 N606676 Cowl extension panel screw (3 required)
4 90447 Cowl extension panel clip
5 46000044 Cowl extension panel

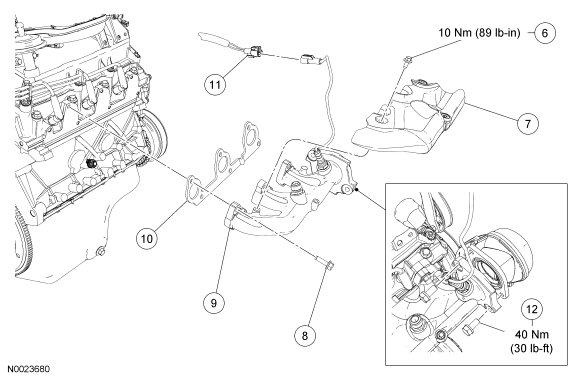

Fig 2: Exploded View Of Right Exhaust Manifold With Torque Specifications
GF0019574Courtesy of FORD MOTOR CO.
Item Part Number Description
6 N605888 RH exhaust manifold heat shield bolt (3 required)
7 9A462 RH exhaust manifold heat shield
8 N811571 RH exhaust manifold bolt (6 required)
9 9430 RH exhaust manifold
10 9448 RH exhaust manifold gasket
11 14A464 Heated oxygen sensor (HO2S) electrical connector (part of 12B637)
12 N804178 Dual converter Y-pipe to exhaust manifold bolt (2 required)
