Idle Air Control (IAC) Valve: Notes

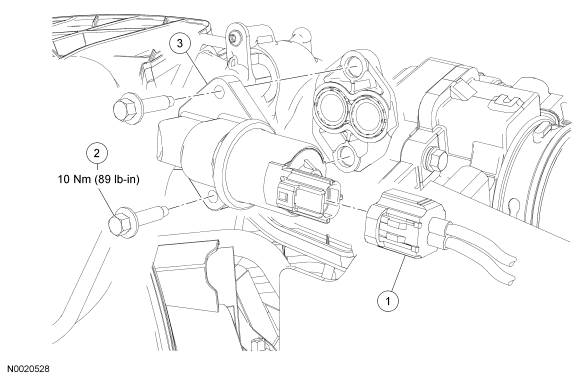

Fig 1: Exploded View Of Idle Air Control IAC Valve With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Idle air control (IAC) solenoid electrical connector
2	W500214	IAC solenoid bolt (2 required)
3	9F715	IAC solenoid
