Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right-side instrument panel insulator.

Fig 1: Locating Right Lower Instrument Panel Insulator
Courtesy of FORD MOTOR CO.
Remove the blower motor speed control (19E624).
1. Disconnect the vacuum line.
2. Disconnect the electrical connectors.
3. Remove the screws and the blower motor speed control.

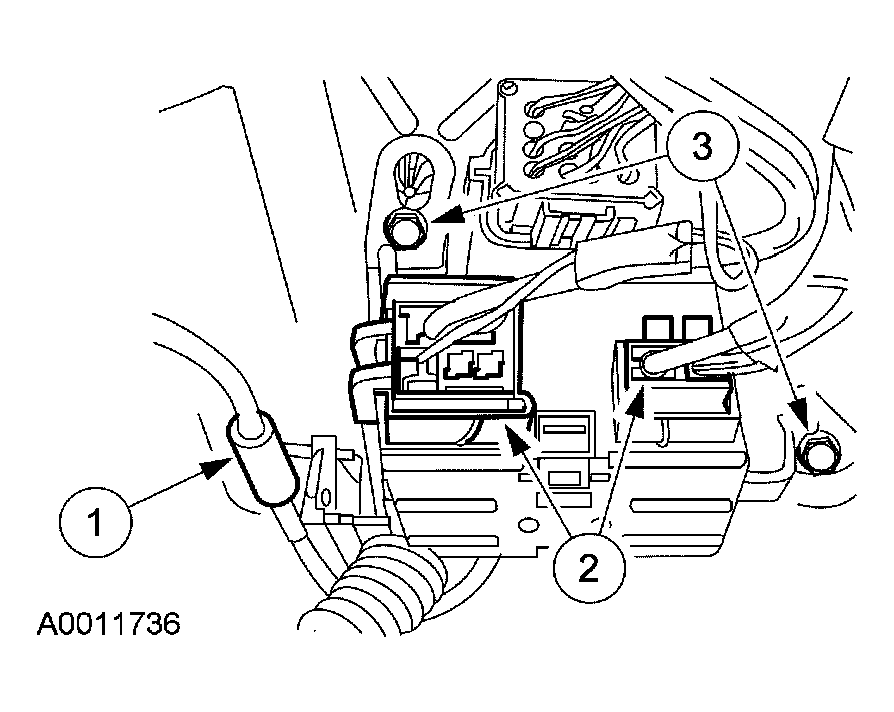

Fig 2: Removing Blower Motor Speed Control
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
