Seat Control Switch: Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

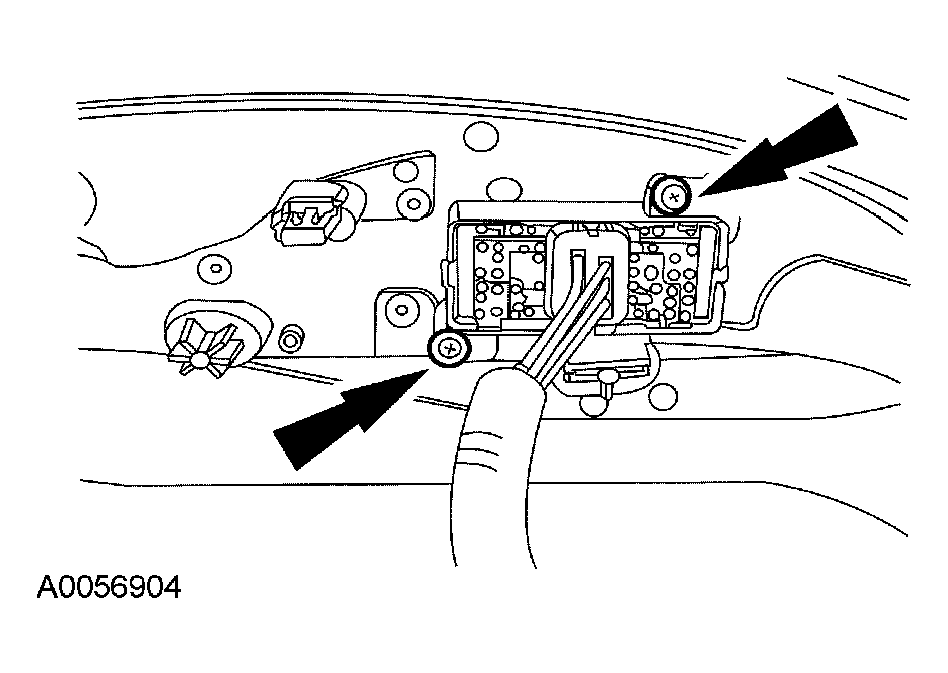

  1. Position the switch and install the screws.
    Fig 1: Installing Switch Screws
    G03958826Courtesy of FORD MOTOR CO.
  2. Position the inner side shield to the seat.
    Fig 2: Positioning Inner Side Shield To Seat
    G03958828Courtesy of FORD MOTOR CO.
  3. Install the outer side shield to the seat.
      NOTE: Route the power seat (if equipped) switch wire harness through the side of the seat while positioning the outer side shield to the seat.
    1. Position the outer side shield to the seat and push in where indicated to install the retaining clips.
    2. Squeeze the inner and outer side shields together to seat the clips.
    Fig 3: Installing Outer Side Shield To Seat
    G03958829Courtesy of FORD MOTOR CO.
  4. Install the outer side shield screw.
    Fig 4: Installing Outer Side Shield Screw
    G03958823Courtesy of FORD MOTOR CO.
  5. Install the recliner handle.
    Fig 5: Installing Recliner Handle
    G03958831Courtesy of FORD MOTOR CO.
  6. Connect the power seat track electrical connector (if equipped).
    Fig 6: Connecting Power Seat Track Electrical Connector
    G03958821Courtesy of FORD MOTOR CO.
  7. Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
