Front Impact Severity Sensor: Notes

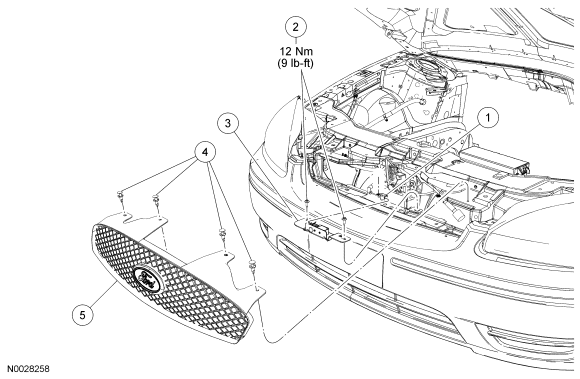

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front impact severity sensor electrical connector (part of 14290)
2	W707722	Front impact severity sensor bolts
3	14B006	Front impact severity sensor
4	W705436	Pin-type retainers
5	8150	Grille assembly
