Restraints Control Module (RCM): Notes

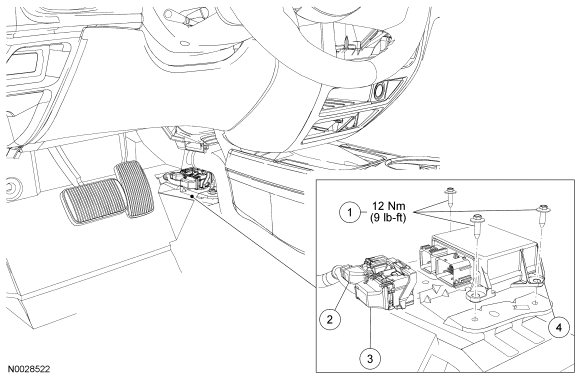

Fig 1: Restraints Control Module Small And Large Connector And Bolts With Torque Specifications
GF0019496Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707722 Restraints control module (RCM) bolts
2 - RCM small connector (part of 14A005)
3 - RCM large connector (part of 14A005)
4 14B321 RCM
