Seat Position Sensor: Notes

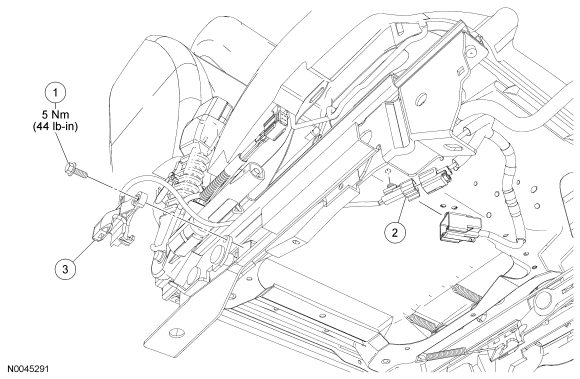

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Seat position sensor bolt
2	-	Seat position sensor electrical connector (part of 14B416)
3	14B416	Seat position sensor
