Side Air Bag Module: Notes

NOTE: Driver seat shown, passenger seat similar.

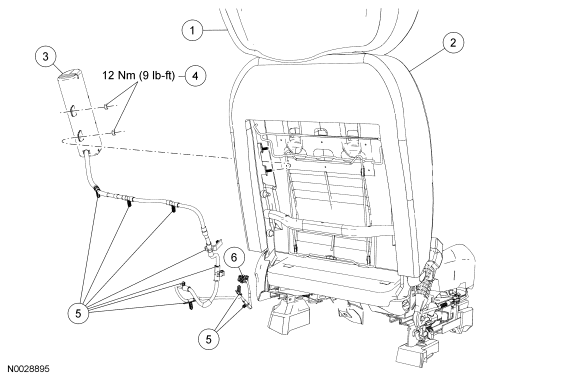

Fig 1: Side Air Bag Module Replacement Components With Torque Specifications
GF0019505Courtesy of FORD MOTOR CO.
Item Part Number Description
1 64417 Seat back trim cover
2 64810 Seat back foam pad
3 611D10 Side air bag module
4 - Side air bag module nuts
5 - Side air bag module electrical wiring clips (part of 611D10)
6 - Side air bag module electrical connector
