Side Impact Sensor: Notes
NOTE:

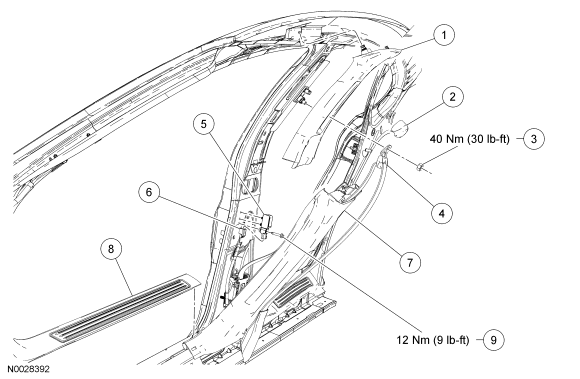

Passenger side shown, driver side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 24356 | Upper B-pillar trim panel |
| 2 | 60262 | Safety belt guide cover |
| 3 | - | Safety belt guide nut |
| 4 | 611B08 | Safety belt guide |
| 5 | 14B345 | Side impact sensor |
| 6 | - | Side impact sensor electrical connector (part of 14A005) |
| 7 | 13229 | Lower B-pillar trim panel |
| 8 | 13208 | Front door scuff plate |
| 9 | W707305 | Side impact sensor bolt |
