Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH side shown, LH side similar.

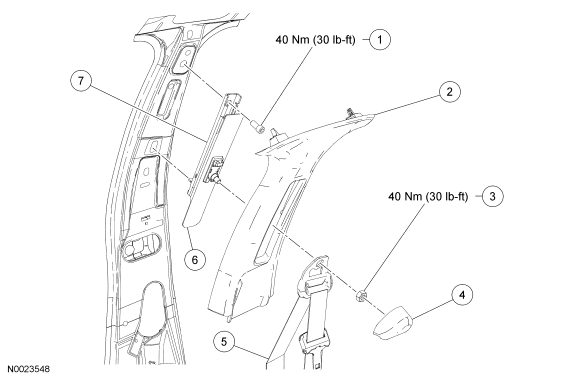

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Bolt, safety belt shoulder height adjuster (part of 602B82)
2	-	Upper B-pillar trim panel
3	N806773	Nut, D-ring
4	60262	D-ring cover
5	611B08 RH/ 611B09 LH	Safety belt and retractor assembly
6	602B90	Safety belt shoulder height adjuster cover
7	602B82	Safety belt shoulder height adjuster
