Power Steering Fluid Cooler: Notes

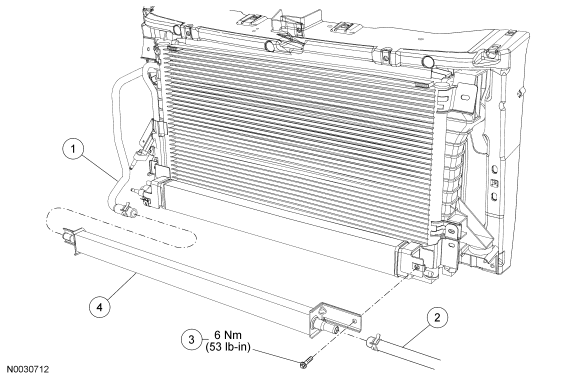

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A713	Steering gear-to-power steering fluid cooler hose.
2	3493	Power steering fluid cooler to power steering pump hose.
3	N606676	Power steering gear cooler bolt (2 required).
4	3D746	Power steering gear cooler.
