Transaxle Support Insulator: Notes

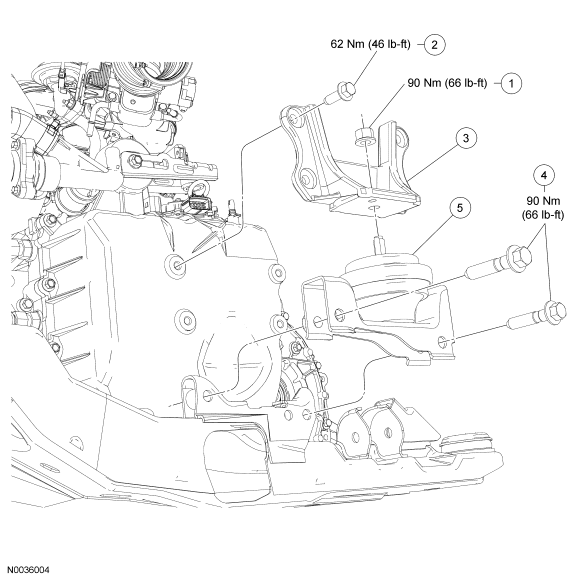

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N602483-S	Insulator nut
2	N605919	Insulator bracket bolt (4 required)
3	6A025	Insulator bracket
4	N804749	Insulator bolts
5	6F063	Transmission support insulator
