Speed Control Actuator: Notes

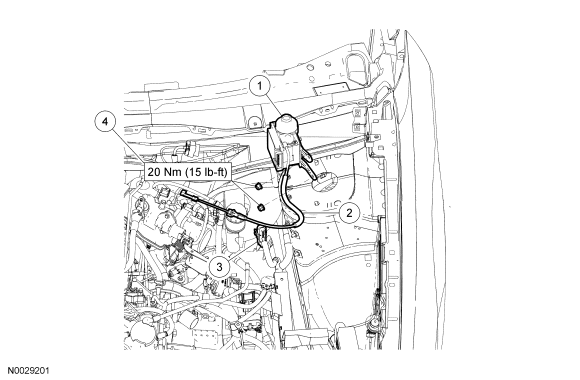

Fig 1: Exploded View Of Speed Control Actuator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9C735	Speed control actuator
2	9A825	Speed control cable
3	-	Speed control actuator electrical connector (part of 14290)
4	-	Speed control actuator nuts (2 required)
