Speed Control Deactivator Switch: Notes

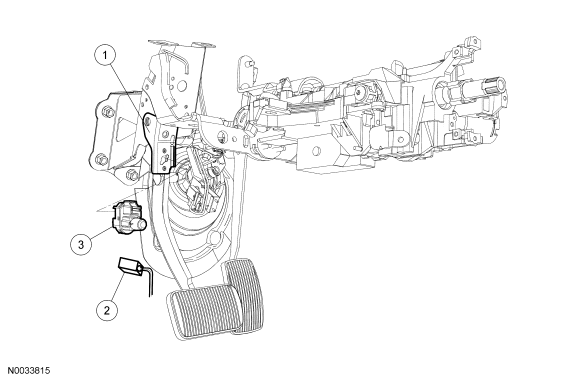

Fig 1: Exploded View Of Speed Control Deactivator Switch

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2450	Brake pedal bracket
2	-	Speed control deactivator switch electrical connector (part of instrument panel harness)
3	9F924	Speed control deactivator switch
