Ignition Coil Connector
Ignition Coil Connector

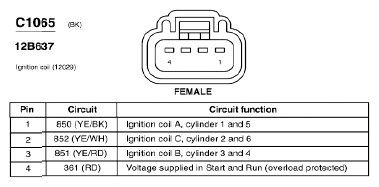

Fig 1: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
