Power Window Motor, Left Rear Connector

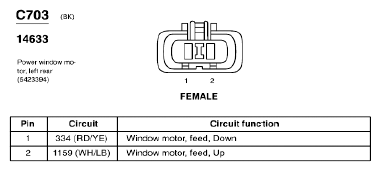

Fig 1: Power Window Motor, Left Rear Connector End View (C703)
G07850270Courtesy of FORD MOTOR CO.
