Wheel Speed Sensor, Right Rear Connector

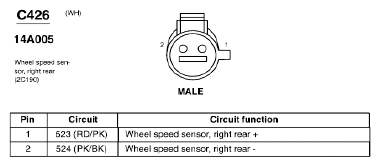

Fig 1: Wheel Speed Sensor, Right Rear Connector End View (C426)
G07850232Courtesy of FORD MOTOR CO.
