Turbine Shaft Speed (TSS) Sensor: Notes

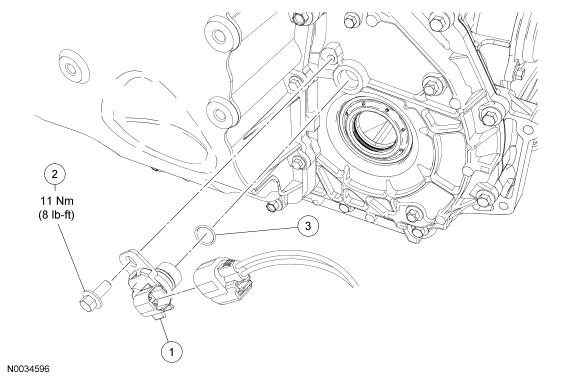

Fig 1: Exploded View Of Turbine Shaft Speed TSS Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7M101	Turbine shaft speed (TSS) sensor
2	N605771-S36	TSS sensor bolt
3	N811757-S100	O-ring seal
