EGR System Module Connector

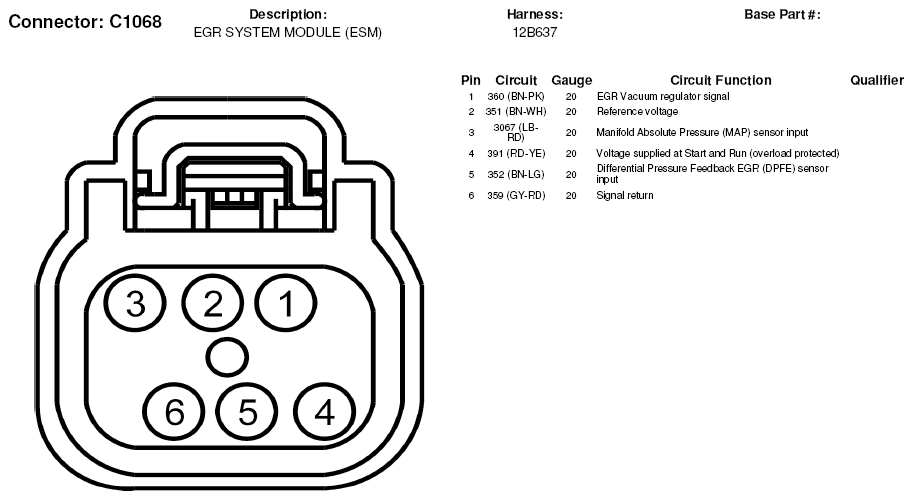

Fig 1: EGR System Module Connector End View (C1068)
G05600405Courtesy of FORD MOTOR CO.
