Occupant Classification System Module Connector
Occupant Classification System Module Connector

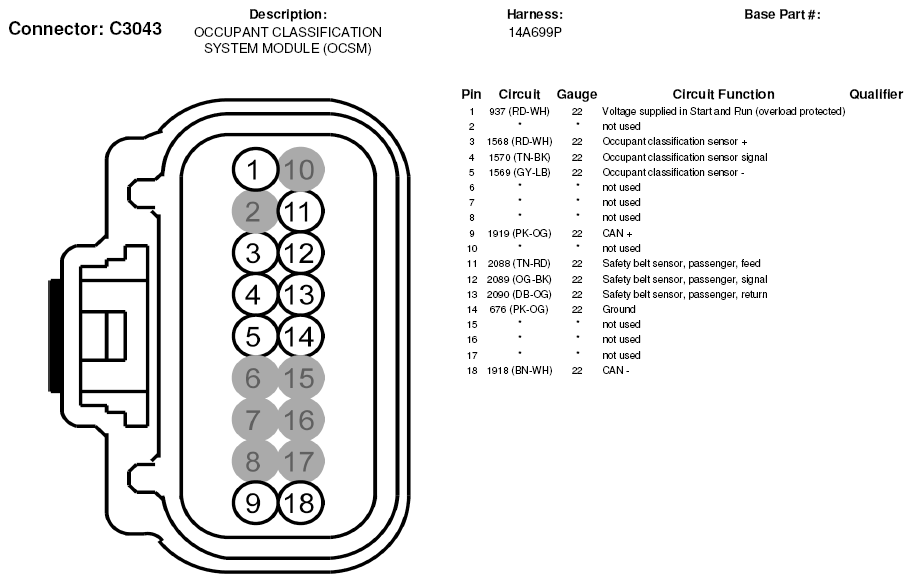

Fig 1: Occupant Classification System Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
